SUBSOILER M Profi

When the soil is compact and challenging, you need a powerful solution. The SUBSOILER M Profi series is designed to penetrate deep and transform even the hardest soil conditions, allowing you to create optimal growing conditions and maximize your yield. Ready to take your soil cultivation to the next level?

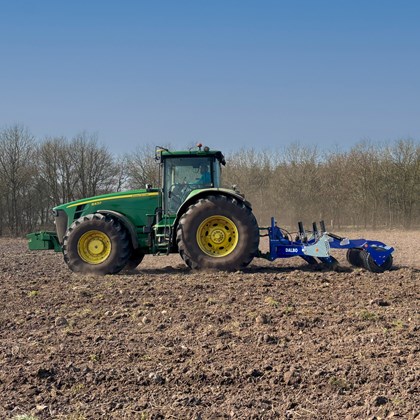

IMG 0139 Cor
Working width
Max. 3,53 m
Transport width
3,00-4,25 m
Working depth
0-50 cm
Horsepower
> 150
Weight
1.470-3.030 kg

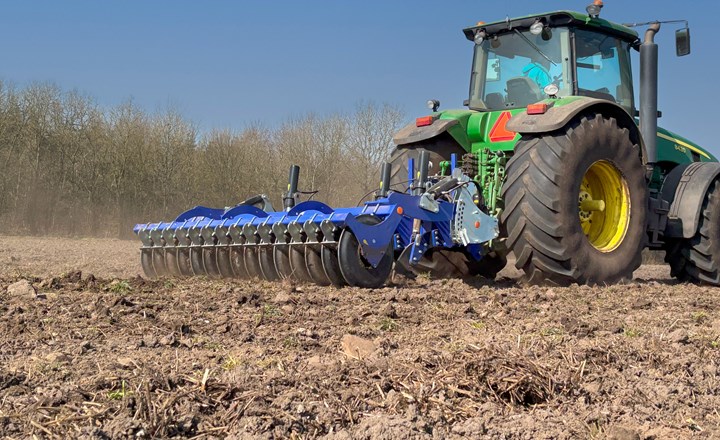

IMG 0121 Cor

SUBSOILER M Profi

2 tines

Transport width
3 m
Transport height
1,85 m
Transport length
3 m
Working width
Max. 2,36 m
Working depth
0-50 cm
Frame height
86 cm
Power req. min.
150 HP
Weight
1.470-1.875 kg

3 tines

Transport width
3 m
Transport height
1,85 m
Transport length
3 m
Working width
Max. 2,36 m
Working depth
0-50 cm
Frame height
86 cm
Power req. min.
190 HP
Weight
1.630-2.030 kg

4 tines

Transport width
3 m
Transport height
1,85 m
Transport length
3 m
Working width
Max. 2,36 m
Working depth
0-50 cm
Frame height
86 cm
Power req. min.
230 HP
Weight
1.790-2.200 kg

5 tines

Transport width
3 m
Transport height
1,85 m
Transport length
3 m
Working width
Max. 2,36 m
Working depth
0-50 cm
Frame height
86 cm
Power req. min.
270 HP
Weight
1.950-2.350 kg

6 tines

Transport width
4,25 m
Transport height
1,85 m
Transport length
3 m
Working width
3,53 m
Working depth
0-50 cm
Frame height
86 cm
Power req. min.
310 HP
Weight
2.395-2.880 kg

7 tænder

Transport width
4,25 m
Transport height
1,85 m
Transport length
3 m
Working width
3,53 m
Working depth
0-50 cm
Frame height
86 cm
Power req. min.
360 HP
Weight
2.550-3.030 kg
IMG E0163 Cor.
Concept

The SUBSOILER M Profi series is a powerful subsoiler for working compacted soil to a working depth of up to 50 cm.

The subsoiler is the perfect tool for deep soil loosening and is designed to handle even the most challenging soil conditions.


It is designed to efficiently work compacted soil, improve soil structure and thus create the best conditions for high yields.

Standard equipment

SUBSOILER standard equipment

  • V-shaped main frame in 10 mm walled plate

  • Variable tine spacing independent of number of tines

  • Hydraulic auto reset stone protection

  • Large selection of packer options
  • Hydraulic depth adjustment

  • 215 mm wing shares with carbide plates and wear plates on
    the wings

  • Carbide rail for tine protection during deep working

IMG 0121 Cor

Packer options

SUBSOILER M Profi can be adapted to any soil type thanks to three different packer options.

Cross Combi light and T-rings are suitable for light to medium soils, while the HD packer is specially designed for medium to heavier soils. When choosing SUBSOILER M Profi with disc section for subsoiling permanent grassland, we recommend combining it with the Cross Combi light packer to ensure that the entire working width is optimally packed in the top layer.

Cross Combi Light

2 tines
1.825 kg
3 tines
1.980 kg
4 tines
2.140 kg
5 tines
2.300 kg
6 tines
2.880 kg
7 tines
3.030 kg

T-ring

2 tines
1.470 kg
3 tines
1.630 kg
4 tines
1.790 kg
5 tines
1.950 kg
6 tines
2.395 kg
7 tines
2.550 kg

HD

2 tines
1.875 kg
3 tines
2.030 kg
4 tines
2.200 kg
5 tines
2.350 kg
6 tines
-
7 tines
-
Tand

Tines

The advanced tine placement system with a multi-holed mounting plate allows variable tine spacing within the machine's working width, providing increased flexibility and a wide range of applications.

The unique, slim tine design in specially hardened steel reduces power requirements and prevents raw soil from being mixed with the top layer.

Tandbevægelse Illustration

Hydraulic stone protection

The SUBSOILER is equipped with a hydraulic stone protection system that optimally safeguards the tines in the event of contact with stones. This also helps reduce excessive stress on the subsoiler’s frame structure and other mechanical components.

At a working depth of 50 cm, the tine can be lifted completely out of the soil, and thanks to the pivot point located in front of the tine, the tip moves exclusively in an upward direction.













Accessories and extra equipment

  • Disc section in front of tines
  • Light bar with marker signs
