TRIMAX trailed 520-630

The TRIMAX trailed cultivator has been developed as a result of the increasing demand for implements with a large working width, and DALBO has constructed the trailed variant with all the excellent features from the well-known lift version and more besides.

The TRIMAX is ground-breaking in that it has the largest ground clearance on the market at 90 cm, as well as a unique 3D stone protection developed by DALBO.

Dalbo Trimax Bugseret Slide 1 (1)
Working width
5.20-6,30 m
Transport width
3,00 m
Working depth
5-30 cm
Horsepower
> 300
Weight
7.800-8.500 kg

Technical data

TRIMAX 520 NSH trailed

Transport width
3,00 m
Transport height
3,50 m
Working width
5,20 m
Weight
7.800 kg
Sections
3
Working depth
0-30 cm
Tine spacing
27,50 cm
Ground clearance
90 cm
Row spacing
70 cm
Working speed
8-12 km/h
Hydraulic connections
1xSA, 4xDA
Min. power requirements
300 HP
Wheels
600/50-22,5 twin
Release pressure per tine (max.)
585 kg
Hydraulic brakes
Optional

TRIMAX 630 NSH trailed

Transport width
3,00 m
Transport height
4,00 m
Working width
6,30 m
Weight
8.500 kg
Sections
3
Working depth
0-30 cm
Tine spacing
27,50 cm
Ground clearance
90 cm
Row spacing
70 cm
Working speed
8-12 km/h
Hydraulic connections
1xSA, 4xDA
Min. power requirements
400 HP
Wheels
600/50-22,5 twin
Release pressure per tine (max.)
585 kg
Hydraulic brakes
Standard

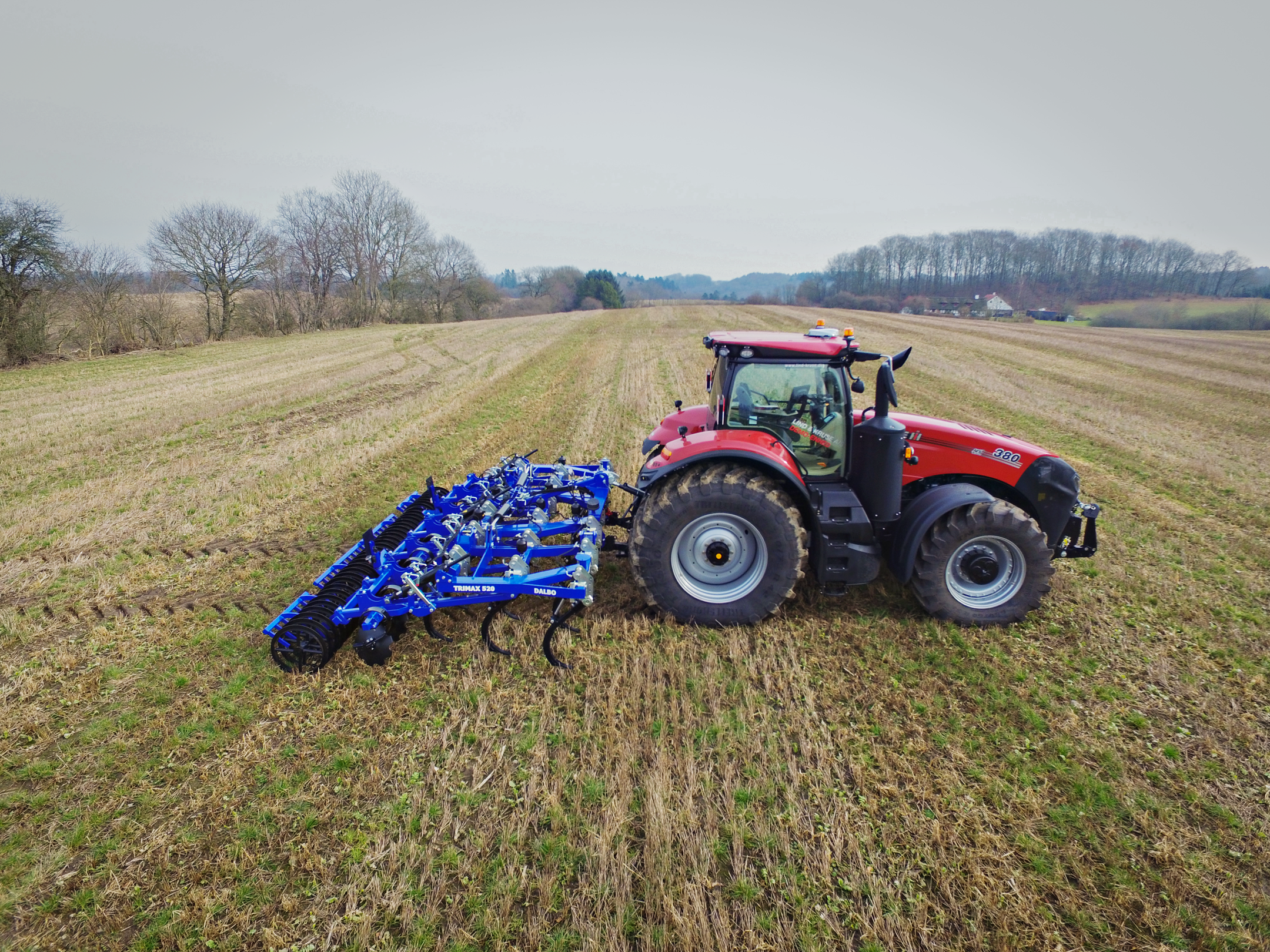

Dalbo Trimax 520 2
Concept

Our trailed TRIMAX stubble cultivator is known for its excellent incorporation of stubble and soil and is a fantastic solution for larger farms

It is equipped with a very robust and high frame
construction with a ground clearance of 90 cm, which makes working in stubble fields with a large amount of straw easier, as the cultivator does not get blocked.

It is also excellent for breaking through ploughed land when allowed to work at depth.

The TRIMAX is equipped with specially designed 3D hydraulically
sprung tines, which protect the frames and other mechanical parts of the cultivator.

After the tines, the ground is levelled off by means of springsuspended
discs. The discs are mechanically adjusted and leave a level surface after the harrow tines. Finally, there is a Ø 600 mm bogie T-ring cage roller, which crushes any clods left by the cultivator and supports its weight.

The power requirement depends on the depth of the cultivator and soil type. A power requirement of approx. 60 hp per metre working width is recommended for cultivating at a speed of 8-12 km per hour under normal soil conditions, but less will be needed when cultivating stubble on lighter soil types.

Standard equipment

TRIMAX standard equipment

  • Fully hydraulic folding and unfolding of sections. Switching from
    driving on roads to field operation without leaving the tractor.
  • LED lighting.
  • 50 x 20 reversible points.
  • Serrated mixing discs incl. side disc.
  • Ø600 mm T-ring roller.
  • Coupling cat. 2 and 3.
  • 3D stone protection or shear bolts (shear bolts only available on working width 300 and 470).
  • Hydraulic brakes, optional for 520.
  • Hydraulic double support leg.
  • Hydraulic depth adjustment with hydra c clips.
  • Wheels 600/50x22 TWIN.
  • Ø600 mm T-ring packer.

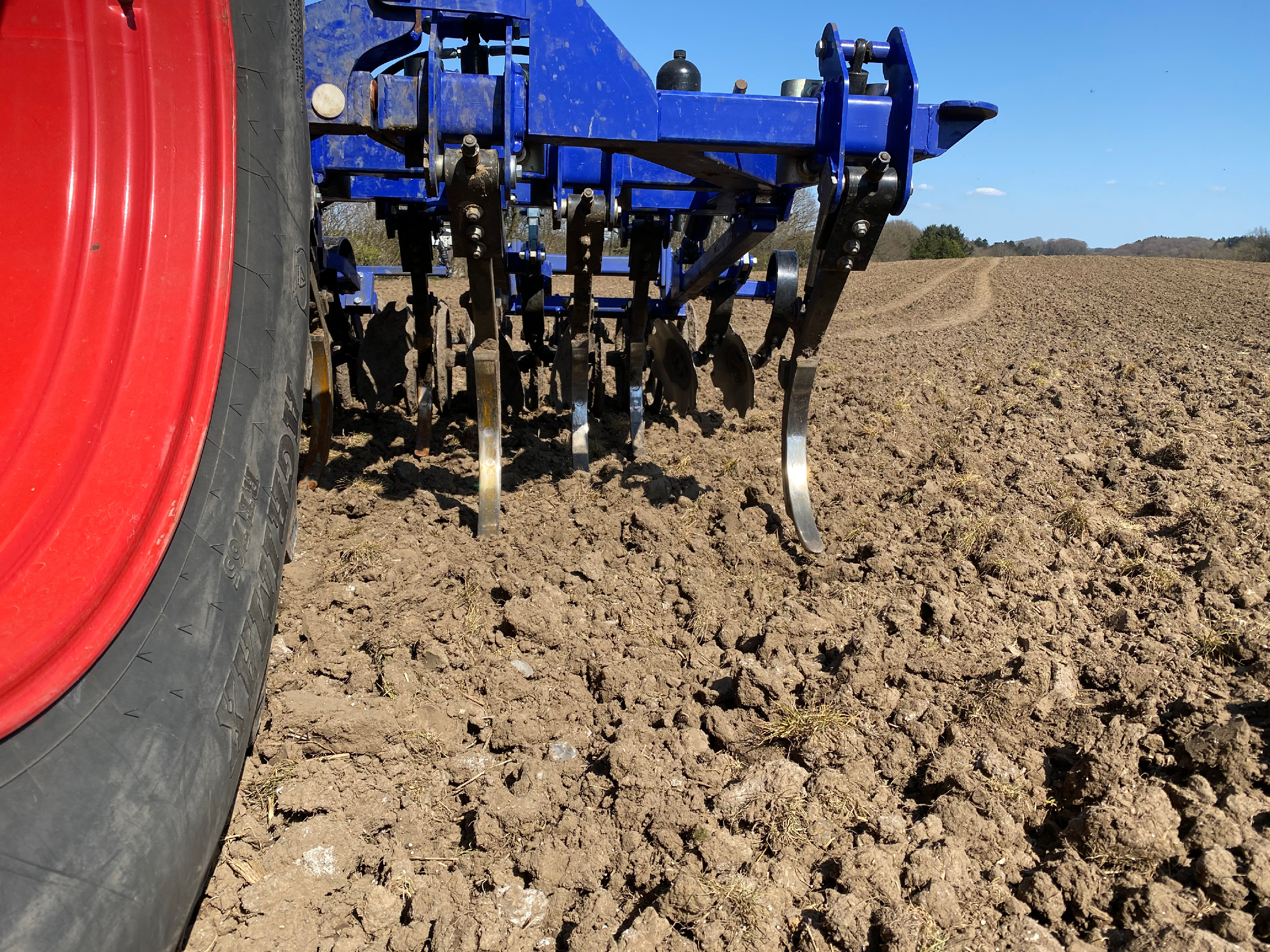

Dalbo Trimax Lift Stensikring

Hydraulic 3D stone protector

The TRIMAX is equipped with specially designed 3D hydraulically sprung tines. These are mounted with a tine spacing of 275 mm, which is distributed over 3 rows and with 70 cm between the rows.

The 3D stone protector ensures that the tines are protected when driving over stones and helps relieve heavy loads on the harrow’s frame construction and other mechanical parts.

The 3D stone protector allows the tine to move 40 cm up and 15 cm to the side when driving over larger stones, and the system is built on a
swiveled bracket supported by a hydraulic ram.

Dalbo Trimax Bugseret Dybderegulering

Depth adjustment

Optimal tillage, mixing of soil and plant residues are ensured by setting the correct cultivation depth.

The depth on the towed TRIMAX is set by adjusting the support wheels at the front of the cultivator and setting the height of the bogie T-ring packer. This is achieved by means of the stroke limiters on the cylinders.

Accessories and extra equipment

  • 1 and 2-row harrow

  • P-Box SpeedTronic seed drill for subsequent crops and rapeseed

  • Hydraulic brakes on 520

  • Wing share

  • Lift feature

  • Air brakes
