POWERCHAIN 500-1200

POWERCHAIN is a disc cultivator that, with its unique diamond-shaped construction, fulfills many functions in the field.

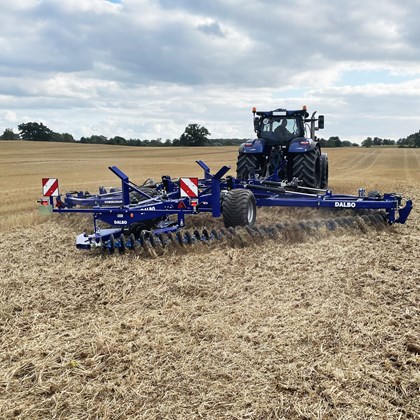

POWERCHAIN 800 NH (5) Cor
Working width
5,00-12,00 m
Transport width
2,45-3,00 m
Working depth
5 cm
Horsepower
110-350
Weight
3.400-10.100 kg
POWERCHAIN

DALBO POWERCHAIN

POWERCHAIN 2

DALBO POWERCHAIN

POWERCHAIN 500

Transport width
2,45 m
Working width
5 m
Number of discs
92 pcs.
Weight
3.400 kg
Wheel
400/60-15.5
Power requirement min.
110-125 HP
Hydr. connections
1xSA + 2xDA

POWERCHAIN 800

Transport width
3,00 m
Working width
8 m
Number of discs
132 pcs.
Weight
5.590 kg
Wheel
520/50x17 14 PLY
Power requirement min.
180 HP
Hydr. connections
1xSA + 2xDA

POWERCHAIN 1200

Transport width
3,00 m
Working width
12 m
Number of discs
199 pcs.
Weight
10.100 kg
Wheel
600/50-22.5
Power requirement min.
300-350 HP
Hydr. connections
3xDA
POWERCHAIN 800 JD (18) Cor
Concept

It is a very cost-effective machine in terms of its working width and compared to other machines on the market.

The POWERCHAIN has a wide range of functions, and helps deal with weeds, decompose plant debris, create false seedbeds and at the same time leveling the field.

The POWERCHAIN has the possibility to process potato haulm and cover crop. If sowing equipment is fitted the POWERCHAIN can sow cover crop, thus saving a pass.


The POWERCHAIN can handle in field undulations leaving a level finish whilst at the same time ensures a full cut (2-5 cm) under most conditions across the full working width.


In summary the POWERCHAIN is a sensible, versatile cultivator.

Standard equipment

POWERCHAIN standard equipment

  • Wheels: 400/60-15.5 on 500

  • Wheels: 520/50x17 14 PLY on 800

  • Wheels: 600/50-22.5 on 1200

  • Support wheels front: 260/75-15.3 on 500 and 800

  • Support whells: 400/60-15.5 (side) and 300/55-14.5 (back)
    on 1200

  • Air brakes on 1200









PC Disce

POWERCHAIN is fitted with 4 individual and loosely hung disc chains. Each chain contains between 22-50 discs and placed at a 40° angle of attack.

The unique diamond shape of the chains and the distance between the discs, ensures a full cut across the working width.


The chains both front and rear are individually hydraulically tightened, to ensure optimal working of the discs in relation to speed and conditions in the field.


The working depth varies depending on soil conditions, but is typically around 5 cm. This can be adjusted using weight blocks.

APV Fritlagt 2

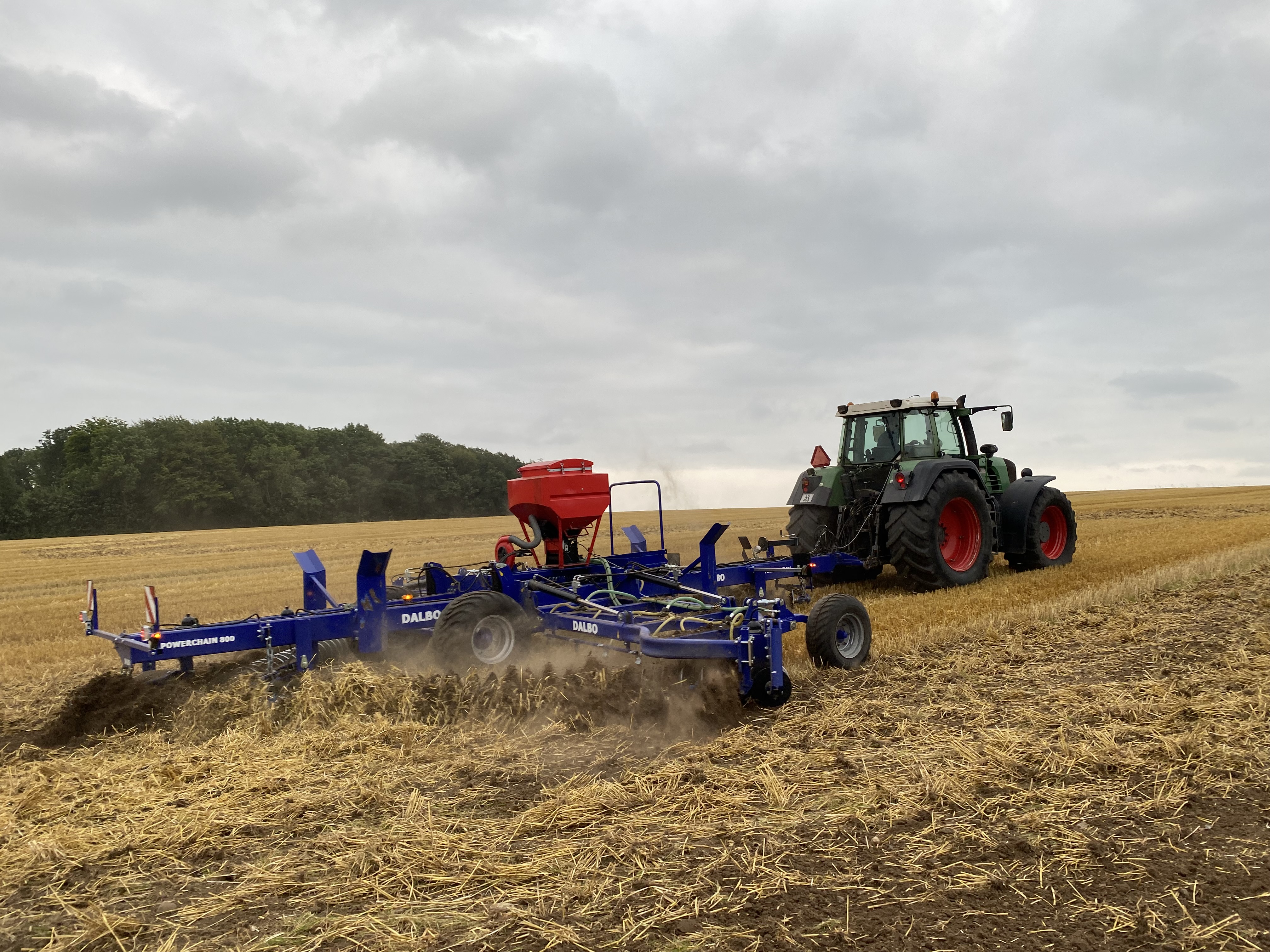

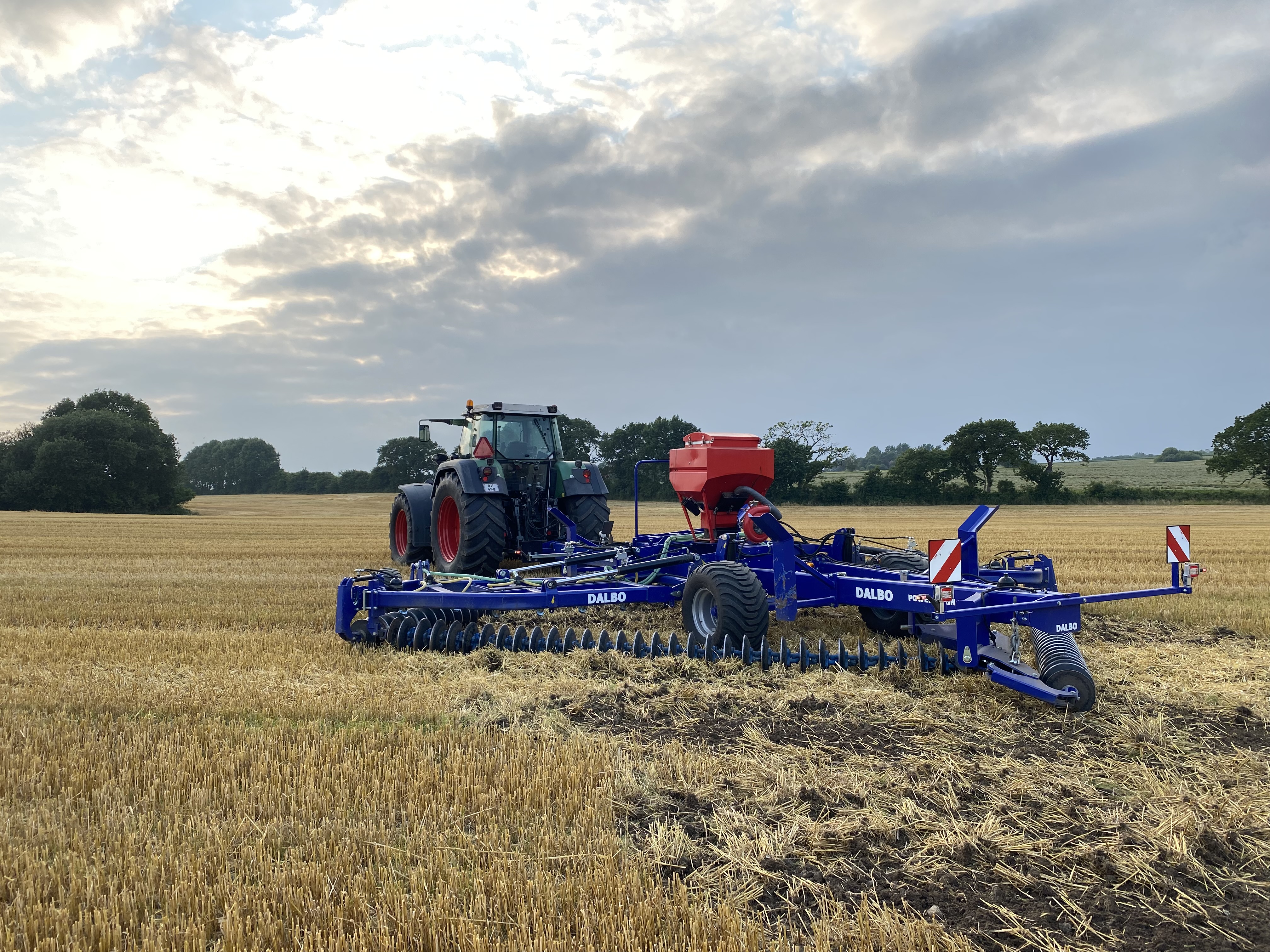

POWERCHAIN can be mounted with sowing equipment which has a large capacity of 300-500 l, this allows you to do stubble cultivation whilst sowing crops.

The distribution plates for the seeder are between the front and rear discs. This causes the front discs to loosen the soil and the rear ones to cover the seeds. This composition will increase the efficiency in the field as a pass is saved.

POWERCHAIN 800 (20) Cor

POWERCHAIN 800 is fitted as standard with large wheels.


It provides a very high load capacity and ensures a stable ride in the field as well as on the road.


Support wheels are mounted on the side frames in front of the chains. This location ensures that the side frames run smoothly, there by achieving an even and level finish.

The POWERCHAIN 1200 is equipped with an additional support wheel at the rear of the machine.

Ekstra Vægt

The discs on the POWERCHAIN can be equipped with extra weight, to adjust working depth and aggressiveness in cultivation.

It is possible to add up to 3 individual 2.4 kg weights to each disc.

Accessories and extra equipment

  • Extra weight blocks - 2,4 kg - up to 3 pieces per. plate
  • Turnable support wheels (sides) for 800 and 1200
  • Air brakes for 800
  • DALBO seeder 300 L with electric blower for 500
  • DALBO seeder 300 L incl. hydraulic blower
  • DALBO seeder 500 L incl. hydraulic blower
  • Mounting kit for DALBO seeder
