CULTIMAX ECO 800 is a further development of the very popular CULTIMAX, which DALBO has produced for more than 15 years. The machine is a powerful 8-bullet seedbed cultivator, with a large working capacity, which is targeted for organic farming.

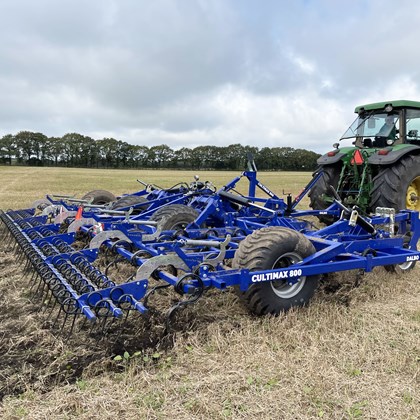

IMG 3608 Korrigeret
Working width
8,00 m
Transport width
3,30 m
Working depth
2-6 cm
> 175
6.300 kg

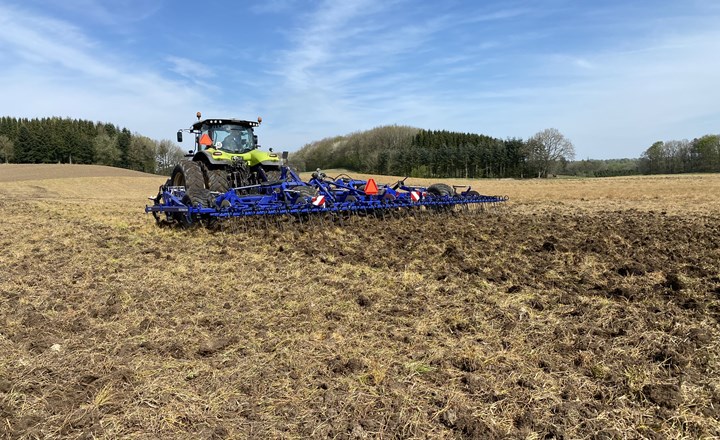

IMG 1036

Technical data


Transport width
3,30 m
Transport height
4 m
Working width
8 m
Number of tines (goose foot with 150 mm spacing)
54 pcs.
Number of harrow tines on rear harrow (80 mm spacing)
100 pcs.
Number of rows (main harrow)
8 pcs.
Number of rows (rear harrow)
3 pcs.
520/50x17 14 PLY
Support wheel front
200/60x14,5 10 PLY
Min. power requirements
175 HP
IMG 3635

CULTIMAX ECO 800 ensures a good mixing of the soil, as
there is a large flow of soil and plant residues. At the same
time, stable and precise tillage is ensured partly by means of
powerful turnable wheels on each side frame and partly by
means of the adjustable drawbar.

Overrunning with CULTIMAX ECO 800 thus helps to significantly reduce the occurrence of weeds. Even strong types of weeds with taproots are reduced with the full cutting of the goose foot.
Standard equipment

CULTIMAX ECO standard equipment

  • 8-row harrow with 210 mm goose foot tines

  • 3-row harrow (rear) with 12 mm harrow tines

  • Hydraulic weight distribution

  • DUOFLEX System

  • Support wheel front: 200/60x14,5 10 PLY

  • Wheels 520/50x17

IMG 1719. Korrigeret Beskåret


CULTIMAX ECO 800 has a tine spacing of 150 mm, and is mounted with a goose foot of 210 mm.

The large overlap ensures full cutting, and specially manufactured heavy-duty double-spring goose foot is eminent for handling weeds with tap roots.

The 54 teeth are distributed over a total of 8 rows, which ensure a very good flow through the harrow.


Harrow (rear)

The powerful harrow (rear) is equipped with 12 mm curved harrow tines, divided into 3 rows.

With as many as 3 rows, there is a very good chance that the soil is shaken from the roots  of weeds and leaves an even surface.

The harrow has adjustable weight transfer through strong tension springs from the main frame to the rear harrow.

IMG 1721 Korrigeret Beskåret


CULTIMAX ECO 800 is fitted as standard with large wheels in size 520/50x17.

It provides a very large carrying capacity, as the large wheel assembly ensures accurate depth control via hydraclips - also in soft areas.


Hydraulic weight distribution & DUOFLEX

CULTIMAX ECO 800 is equipped with DALBO's well-known and well-tested hydraulic weight distribution, which ensures an even weight over the entire working width.

At the same time, the machine also has DUOFLEX. A system that ensures individual movement for each section, and thus optimal ground contact regardless of the contours of the ground.
