MAXIROLL 3-section 530-1030

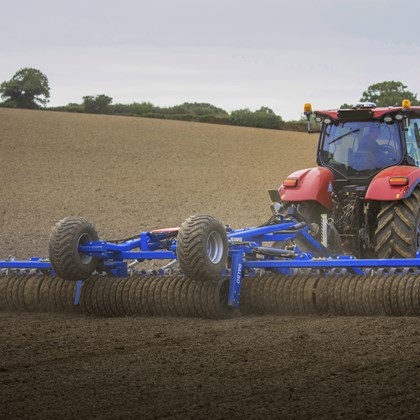

MAXIROLL’s unique roller frame design and high ground clearance enable the installation of a wide range of efficient front tools. This makes MAXIROLL a system roller with unique versatility, which can help increase productivity and yield.

Dalbo Maxiroll
Working width
5,30-10,30 m
Transport width
2,50-3,00 m
Ringstørrelse
50-65 cm
Hestekraft
> 90 HK
Weight
2.290-7.160 kg
Dalbo Maxiroll 630 2 Thumbnail
DALBO MAXIROLL 630 - with 2 rows of harrow tines and cracker board

Dalbo Maxiroll 630 Thumbnail
DALBO MAXIROLL 630 - with 2 rows of harrow tines, cracker board

Dalbo Maxiroll Thumbnail
DALBO MAXIROLL

Dalbo Maxiroll 950 Thumbnail
DALBO MAXIROLL 950 - with cracker board

Technical data

MAXIROLL 530

Min. power requirements
90 HP
SNOWFLAKE® 50 cm weight/number of rings
2.775 kg/109 pcs.
SNOWFLAKE® 55 cm weight/number of rings
3.205 kg/109 pcs.
SNOWFLAKE® 60 cm weight/number of rings
3.855 kg/109 pcs.
SNOWFLAKE® 65 cm weight/number of rings
3.960 kg/108 pcs.
Crosskill 53 cm weight/number of rings
2.290 kg/55 pcs.
Crosskill 60 cm weight/number of rings
2.975 kg/55 pcs.
Cross Combi 50 cm weight/number of rings
2.900 kg/92 pcs.
Cross Combi 55 cm weight/number of rings
3.320 kg/92 pcs.
60 cm bogie Cross Combi
-
60 cm T-ring
-
60 cm bogie T-ring
-
Transport width
2,50 m
Wheels
300/80x15.3

MAXIROLL 630

Min. power requirements
100 HP
SNOWFLAKE® 50 cm weight/number of rings
3.460 kg/129 pcs.
SNOWFLAKE® 55 cm weight/number of rings
4.050 kg/129 pcs.
SNOWFLAKE® 60 cm weight/number of rings
4.605 kg/129 pcs.
SNOWFLAKE® 65 cm weight/number of rings
5.050 kg/126 pcs.
Crosskill 53 cm weight/number of rings
3.035 kg/63 pcs.
Crosskill 60 cm weight/number of rings
3.920 kg/63 pcs.
Cross Combi 50 cm weight/number of rings
3.540 kg/114 pcs.
Cross Combi 55 cm weight/number of rings
4.090 kg/114 pcs.
60 cm bogie Cross Combi
4.900 kg/67 pcs.
60 cm T-ring
2.355 kg/45 pcs.
60 cm bogie T-ring
3.555 kg/67 pcs.
Transport width
2,50 m
Wheels
300/80x15.3

MAXIROLL 760

Min. power requirements
110 HP
SNOWFLAKE® 50 cm weight/number of rings
4.185 kg/157 pcs.
SNOWFLAKE® 55 cm weight/number of rings
4.935 kg/157 pcs.
SNOWFLAKE® 60 cm weight/number of rings
5.595 kg/157 pcs.
SNOWFLAKE® 65 cm weight/number of rings
5.990 kg/148 pcs.
Crosskill 53 cm weight/number of rings
3.685 kg/ 79 pcs.
Crosskill 60 cm weight/number of rings
4.785 kg/79 pcs.
Cross Combi 50 cm weight/number of rings
4.375 kg/134 pcs.
Cross Combi 55 cm weight/number of rings
5.070 kg/134 pcs.
60 cm bogie Cross Combi
-
60 cm T-ring
-
60 cm bogie T-ring
-
Transport width
2,50 m
Wheels
400/60x15.5 Twin

MAXIROLL 830

Min. power requirements
120 HP
SNOWFLAKE® 50 cm weight/number of rings
4.450 kg/165 pcs.
SNOWFLAKE® 55 cm weight/number of rings
5.210 kg/165 pcs.
SNOWFLAKE® 60 cm weight/number of rings
5.970 kg/167 pcs.
SNOWFLAKE® 65 cm weight/number of rings
-
Crosskill 53 cm weight/number of rings
3.900 kg/83 pcs.
Crosskill 60 cm weight/number of rings
5.050 kg/83 pcs.
Cross Combi 50 cm weight/number of rings
4.555 kg/83 pcs.
Cross Combi 55 cm weight/number of rings
5.275 kg/83 pcs.
60 cm bogie Cross Combi
-
60 cm T-ring
-
60 cm bogie T-ring
-
Transport width
2,50 m
Wheels
400/60x15.5 Twin

MAXIROLL HD 830

Min. power requirements
120 HP
SNOWFLAKE® 50 cm weight/number of rings
-
SNOWFLAKE® 55 cm weight/number of rings
-
SNOWFLAKE® 60 cm Weight/number of rings
6.300 kg/165 pcs.
SNOWFLAKE® 65 cm Weight/number of rings
6.900 kg/162 pcs.
Crosskill 53 cm weight/number of rings
-
Crosskill 60 cm weight/number of rings
-
Cross Combi 50 cm weight/number of rings
-
Cross Combi 55 cm weight/number of rings
5.600 kg/142 pcs.
60 cm bogie Cross Combi
6.300 kg/83 pcs.
60 cm T-ring
-
60 cm bogie T-ring
4.600 kg/85 pcs.
Transport width
3,00 m
Wheels
400/60x15.5 Twin

MAXIROLL 950

Effektbehov min.
130 HK
SNOWFLAKE® 50 cm - vægt/antal ringe
5.730 kg/197 stk.
SNOWFLAKE® 55 cm - vægt/antal ringe
6.645 kg/197 stk.
SNOWFLAKE® 60 cm - vægt/antal ringe
7.365 kg/197 stk.
SNOWFLAKE® 65 cm - vægt/antal ringe
-
Crosskill 53 cm - vægt/antal ringe
5.130 kg/99 stk.
Crosskill 60 cm - vægt/antal ringe
6.425 kg/99 stk.
Cross Combi 50 cm - vægt/antal ringe
5.700 kg/174 stk.
Cross Combi 55 cm - vægt/antal ringe
6.770 kg/174 stk.
60 cm bogie Cross Combi
-
60 cm T-ring
-
60 cm bogie T-ring
-
Transportbredde
3,00 m
Hjul
400/60x15.5 Twin

MAXIROLL 1030

Effektbehov min.
140 HK
SNOWFLAKE® 50 cm - vægt/antal ringe
6.030 kg/213 stk.
SNOWFLAKE® 55 cm - vægt/antal ringe
7.025 kg/213 stk.
SNOWFLAKE® 60 cm - vægt/antal ringe
-
SNOWFLAKE® 65 cm - vægt/antal ringe
-
Crosskill 53 cm - vægt/antal ringe
5.380 kg/107 stk.
Crosskill 60 cm - vægt/antal ringe
6.785 kg/107 stk.
Cross Combi 50 cm - vægt/antal ringe
6.000 kg/186 stk.
Cross Combi 55 cm - vægt/antal ringe
7.160 kg/186 stk.
60 cm bogie Cross Combi
-
60 cm T-ring
-
60 cm bogie T-ring
-
Transportbredde
3,00 m
Hjul
400/60x15.5 Twin

OBS. Noget tilbehør passer kun til bestemte arbejdsbredder. Kontakt venligst din lokale DALBO-forhandler.

Dalbo Maxiroll
Concept

MAXIROLL’s unique roller frame design and high ground clearance enable the installation of a wide range of efficient front tools

MAXIROLL is a roller that can be used for many different purposes by combining different front tools. With a MAXIROLL you can perform a variety of tasks, from simple rolling after sowing, stubble cultivation, care of grass areas & for seedbed preparation.

This makes MAXIROLL a truly versatile roller in the field, and it saves valuable time and costs compared to most other conventional rollers and similar implements.

MAXIROLL comes standard with many of our unique features such as hydraulic weight distribution, DUOFLEX, quality roller rings with a 3-6 year warranty, automatic transport safety and much more.

In summary, a MAXIROLL combines quality, productivity and versatility in a unique product.

Standard equipment

MAXIROLL standard equipment

  • Fully hydraulic folding and unfolding of sections. Switching from
    driving on roads to field operation without leaving the tractor.
  • LED lighting.
  • Ø60 mm shafts made of high-tensile steel.
  • Strong flange bearings.
  • Hydraulic weight distribution that ensures an evenly distributed
    field pressure over the entire working width, regardless of the
    contours of the field.
  • DUOFLEX with individual flexibility between sections.
  • Automatic transport security for optimal safety
    during transport.
  • Hydraulic connection: 1xDA and 1xSA on 530-830
    and 2xDA on 950-1030.
  • Detachable jack.
  • At least 500 kg per working metre.
  • Strong frames made of quality steel and high-tensile steel.
MAXIROLL

Roller rings

SNOWFLAKE®. This ring is used in combination with a breaker ring and is suitable for most purposes, both before and after sowing.

The Cross Combi rings are very suitable for seedbed preparation, especially in combination with a hydraulic cracker board.

Another excellent combination is a long fingered harrow and it is used for efficient aeration and rolling of grasslands. For very heavy soil types, MAXIROLL 630 and 830 HD can be equipped with bogie Cross Combi rings, which with their higher weight effectively crush hard clods.

Crosskill rings are used primarily for seedbed preparation and leave the soil loose at the top and firmer just below the surface, which is optimal for sowing.

For the MAXIROLL 630 and 830 HD models, we also offer our T-rings. This type of ring is particularly suitable for use on light and sandy soil types.

Dalbo Maxiroll Lamelplanke

Cracker board

Hydraulically operated and adjustable cracker board, consisting of strong 80 mm spring tines with 100 x 12 mm angled wearing points, which makes it perfect for crushing clods and levelling the soil, thus leaving the soil loose, smooth and in perfect condition for the roller section.

The board is suspended in a parallelogram, which makes the angle and working depth independent of each other. When using only MAXIROLL for rolling, the cracker board can be lifted hydraulically, providing increased usability and versatility.

The cracker board requires an extra double-acting hydraulic service on the tractor. In order to achieve optimal working conditions for, and thereby the effect of the cracker board, we recommend a working speed of 8-10 km per hour.

Dalbo Maxiroll Strigle

Harrow/mole hill board

The adjustable mole hill board is primarily designed to increase roller performance when clearing, rolling and tending grasslands along with a 2 row harrow section.

The harrow tines can be adjusted to make them more or less aggressive and the mole hill board can be vertically raised and lowered. Each section comes with a support wheel which is manually adjusted. This supports each section to follow the contours of the ground.

MAXIROLL med bogie Cross Combi og knivtromle

Knife roller

A knife roller section helps you cut and crush thick stubble for faster and better decomposition and is a perfect match with the aggressive ring profile of the Cross Combi rings.

The aggressive profile of the rings combined with a knife roller is especially suitable for cutting and crushing powerful stubble, for example corn, and is a unique tool for controlling the corn borer beetle.

Dalbo Maxiroll Saaudstyr

2 rows of tines with cracker board

The 2-row harrow with straight tines and cracker board transform MAXIROLL into a stubble implement or a seedbed harrow.

Dalbo Maxiroll Striglesektion

3 row black grass harrow

We offer many different harrowing tools that allow you to perform a wide range of tasks from simple grassland aeration to harrowing in stubble.

The 3 rows of black grass harrow is hydraulic put in and out of work, and hydraulic adjusted to make them more or less aggressive.

harrow are hydraulically put in and out of work, and hydraulically adjusted to make the tines more or less aggressive. This is an ideal combination to use directly into stubble to encourage a chit.

Wheel track eradicator

Wheel track eradicator

The use of track eradicators helps you remove compaction from the soil structure behind the tractor wheels, especially when using heavy tractors with single wheel sets on light to medium soil types.

Dalbo Maxiroll Saaudstyr

Sowing equipment

If you are looking for an ideal solution for the care of grasslands, sowing of subsequent crops and the like, our sowing equipment will help you save precious time and increase efficiency.

We offer either a 300L or 500L hopper, with either electric or hydraulic fan option.

Accesssories and extra equipment

  • Air brakes or hydraulic brakes
  • High pull, drawbar or Scharmüller ball hitch
  • Rubber suspended bearings
  • Cracker board
  • Knife roller
  • 3-row seedbed harrow
  • Hydraulic jack
  • Wheel upgrade
  • Stone trays 45L or 100L
  • 2 row harrow tines
  • 2 row harrow tines and cracker board
  • Cracker board with clod crackers
